Length O/A 20’7" (6170)
Length W/L 18’6" (5630)
Beam 6’11" (2108)
Draft 2’4" (711)
Displacement 2600 lbs (1176)
T.M. 3 ½ tons
Reg. 3.2 tons
Rating 107
O/A height from ground 6’6" (1980)
O/A height on trailer 7’9" (2360)
Mast Height from step 24’ (7315)
Length of boom 10’2" (3100)
Width of deck 6" (160)
| Sail Areas | Main 110sq ft (10.2), Jib 67sq ft (6.23), Genoa 125sq ft (11.6),Storm jib 25sq ft (2.32) |
|---|---|
| Rigging | Standing rigging 3⁄16 in (5) diameter vinyl covered plough steel. Fastenings 3¼ inch (6.3) diameter stainless steel bolts. Halliards ¾ inch (20) diameter pre-stretched Terylene. Sheets 1⅛ (29) diameter plaited Terylene. |
| Interior | Main Cabin: Headroom 4'6" (1370). Sitting Headroom 3'4" (1016). Bunk Length 7' (2130). Main Cabin: shelf area 16sq ft (1.5). Locker Volume 16cu ft (.45). Sink Size 15x11x6 (380x280x150). Fore Cabin: Bunk Length 6'3" (1910). Sitting Headroom 2'7" (790). Locker Volume 16cu ft (.45). Hanging Locker and Toilet Compartment each volume 13cu ft (.37). Height 52" (1320). Width 23" (580). |
| Exterior | Cockpit: Overall Length 4'10" (1470). Width 4' (1220). Depth 2'2" (560). Height of bridge deck 2'2" (560). Seat Height 14" (355). Well Size 2"x 3'6" (600x1066). Volume of lockers under cockpit seats 18cu ft (.51). Petrol tank locker volume 5cu ft (.14). Outboard Motor Mounting. Light alloy on stainless steel pivots. Locks stainless steel. |
| Bilge keels hydrofoil section | Cast Iron. Weight 550lbs (250) each. Keel attachment ½ inch (12.7) diameter stainless steel studs through steel plates moulded into hull. 16 studs per keel. Rudder blade galvanised steel plate. Cheeks 2.1" (25) Marine plywood. Windows 3⁄16 inch (5) Perspex set in non-oxidising rubber. Deck fittings gun metal. Mast step light alloy. Bottle screws superston. Suitable engine, Johnson 3hp. Johnson 5½hp. Johnson 6hp. |

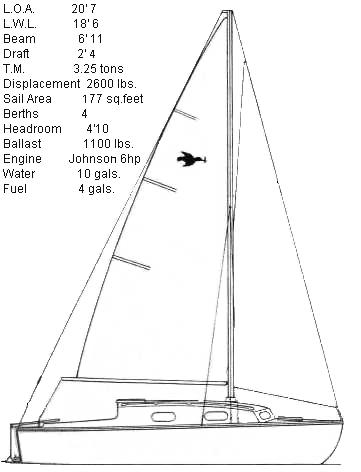

| Technical Drawing |  |
